4,000 lb
mini excavator
rental

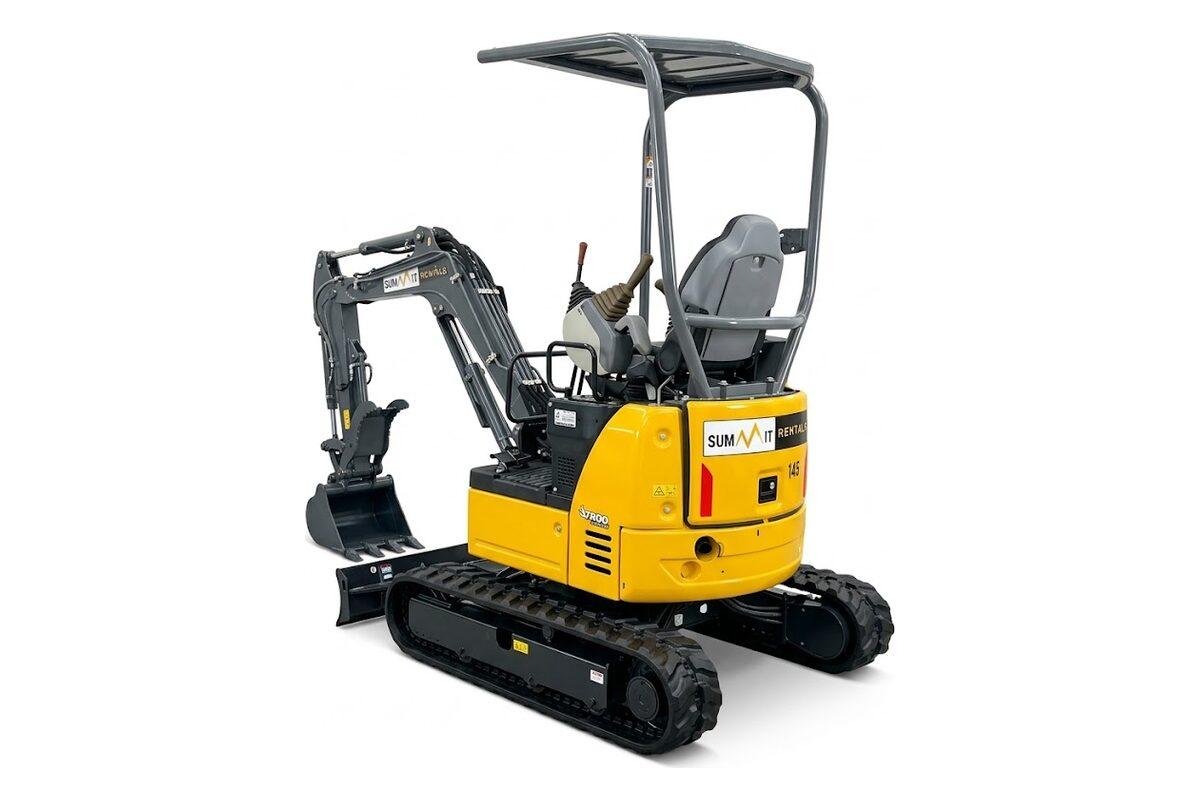

John Deere 17G. 3 ft 2 in wide with the tracks pulled in, so it drives through a garden gate, then widens out to 4 ft 2 in for stability once it is in the yard.
Rates don't include delivery, fuel, the 15% damage waiver or tax. See your out-the-door price with a quick quote. Delivery is required and billed each way.
The undercarriage retracts
The 17G runs on an expandable undercarriage. Pull the tracks in and it is 3 ft 2 in across, which gets it through a standard side gate. Push them out on site and it widens to 4 ft 2 in for stability.
That one feature is why this machine goes out. Almost nothing else that digs 7 ft down will fit down the side of a house.
It is a small machine with a small engine, so it is not a production digger. For trenching and footings at pace, take the Kubota U35-4.
Rent it for tight access digging
- Irrigation and sprinkler lines
- Backyard footings and piers
- Utility trenching to a shed
- Pool and hardscape prep
- Root and stump excavation
- Drainage in an established yard

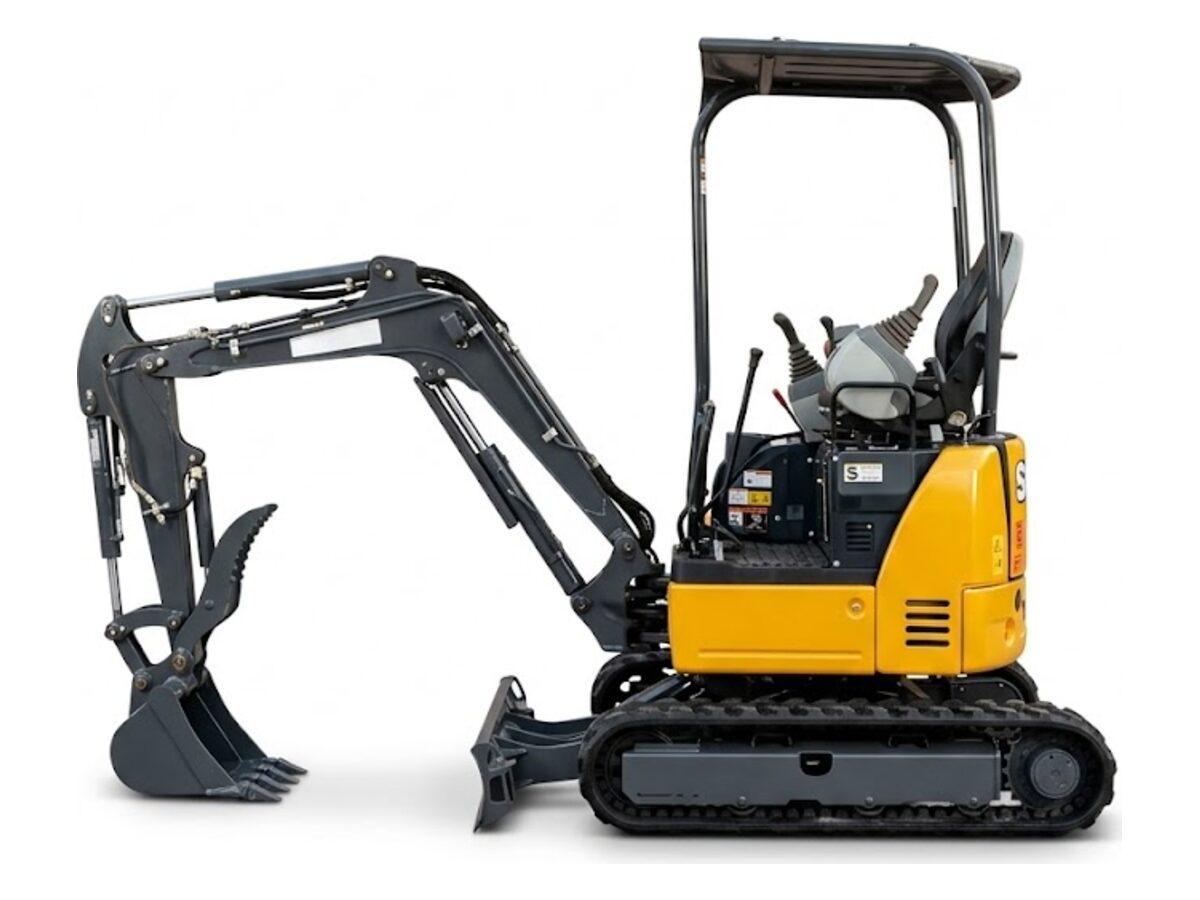

John Deere 17G
Model level specs| Make and model | John Deere 17G |
|---|---|
| Operating weight | 3,790 lb |
| Weight class | 4,000 lb class |
| Max dig depth | 7 ft 2 in |
| Max reach | 12 ft 6 in |
| Undercarriage width | 3 ft 2 in to 4 ft 2 in, expandable |
| Transport length | 11 ft 6 in |
| Transport height | 7 ft 10 in |
| Engine | 14.5 HP diesel |
| Tail swing | Reduced |
| Track shoe width | 9 in rubber |
| Blade | Backfill blade standard |
| Bucket options | 12 in and 18 in |
| Fuel | Diesel |
Which term to book
At $242/day and $755/week, the week is worth taking from about the fourth day. The 4-week rate of $1,700 works out near 7 days of day rate.
It costs the same by the day as the 318G skid steer, which is worth knowing if you are deciding between digging and pushing.
Included with every rental
- A current annual inspection, with the operator manual riding in the machine
- A full function check before it leaves the yard, so nothing surprises you on site
- A phone number that reaches the yard directly rather than a call center
Will it fit? 4 things decide it
Measure before you bookGate width
3 ft 2 in with the tracks retracted. Measure your clear gate opening including the post and any latch hardware.
Overhead clearance
7 ft 10 in to transport. Check eaves, patio covers and low branches on the route to the dig.
Ground and turf
Rubber tracks are gentler than steel, but a loaded machine still marks turf and can rut soft ground. Plywood helps.
Dig depth and reach
7 ft 2 in down and 12 ft 6 in across. If your footing or line is deeper than that, you need the bigger machine.
Call Arizona 811 before you dig. The locate is free, it is required by law, and it applies to homeowners as well as contractors.
Buckets and the blade
12 in and 18 in buckets are available. The 12 is for utility lines and irrigation, the 18 for footings and general excavation.
The backfill blade is standard. It doubles as a stabilizer while you dig and as the fastest way to push spoil back into the trench afterward.
Operator rules
Excavators fall under OSHA 29 CFR 1926.602 for earthmoving equipment, and trenching work is covered separately by 29 CFR 1926 Subpart P.
- Call Arizona 811 and wait for the locate before any digging starts.
- A trench deeper than 5 ft needs a protective system designed under Subpart P.
- Never leave the machine with the bucket raised or the blade up.
- Inspect tracks, hydraulics and the quick coupler at the start of every shift.
- Keep everyone clear of the swing radius, including behind the machine.
Work out the estimate total
Put in the ZIP the machine is going to and how long you need it. The delivery band and the estimate total come back straight away, waiver, fuel and tax included.
| Rental, 1 day | — |
|---|---|
| Damage waiver, 15% | — |
| Prepaid fuel | — |
| Delivery out, enter a ZIP | — |
| Pickup back | — |
| Sales tax, 9.1% | — |
| Estimate total | — |
About this figure. The total carries the 15% damage waiver, prepaid fuel and 9.1% sales tax. This is an estimate rather than a quote, and we confirm the band from the full address before anything is booked.
Zones and rates
Delivery is required on this machine and billed each way at the compact tier.
| Distance | Each way | Round trip |
|---|---|---|
| 0 to 20 mi | $75 | $150 |
| 21 to 30 mi | $95 | $190 |
| 31 to 40 mi | $125 | $250 |
| 41 to 50 mi | $175 | $350 |
Past 50 mi, call us and we will quote the run to your address. Deliveries go out Monday to Friday between 3 and 11 a.m., and same day is possible when the machine is sitting on the yard. Have it ready for pickup before 7 a.m. on the day that it goes back to us.
Where we deliver
Common questions
Will the John Deere 17G fit through my gate?
With the undercarriage retracted it is 3 ft 2 in wide, which clears most standard side gates. Measure your actual opening, because the post and latch eat into it.
What does the expandable undercarriage do?
It narrows the tracks for access and widens them for stability. You drive in retracted, then expand before you start digging so the machine is stable at reach.
How deep will a John Deere 17G dig?
7 ft 2 in at maximum. That covers irrigation, most residential footings and utility runs, but not a deep sewer tie in.
Can I pick up the John Deere 17G myself?
Delivery is required on this machine. At 3,790 lb it needs a properly rated trailer and tie downs, so we handle transport at the compact tier.
Related equipment
All excavatorsReady to book?
You can reserve it online in about 2 min, or call the yard and we will put it straight onto the schedule.
Or talk to a Summit representative
Tell us the job, the access route and the ground conditions, and we will tell you whether this is the right machine before you pay for it.
Call (602) 900-1845
